PE100

PE 100

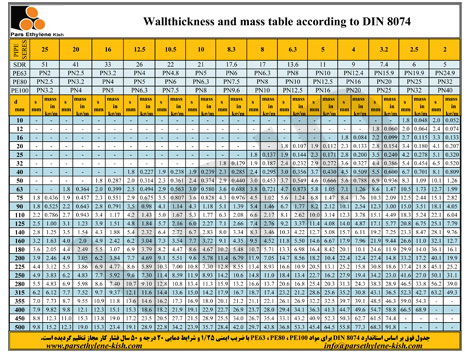

Wall thickness and mass table according to DIN 8074

PE 100 polyethylene pipes are one of the novelest and best type of polyethylene materials which possess unique physical and operational properties that is capable of enduring more pressure due to more density and less weight and thickness. PE100 polyethylene actually fixes the problem with the polyethylene pipes and connections due to its anti-UV property.

The polyethylene pipes produced with PE100 grade materials are relatively lighter and stronger than the other grades of polyethylene materials and therefore are cost effective as well, a polyethylene pipe produced with these materials will be lighter than the same pipe with lower grade materials.

PE100 polyethylene pipes price

Since PE100 polyethylene are mostly used for production of high pressure pipes, their price higher than the other polyethylene pipes. However, its price is lower than or equal to the price of the other pipes that are produced in the same working pressure, because less material is to be used but in some cases, since some imported self-colored raw material such as Borouge (LS 3490 materials) has to be used and the price for the pipes produced with such materials will be directly influenced by foreign currency value and other factors, so it is more expensive. In order to receive the price list for PE100 polyethylene pipes contact the sales unit of Pars Ethylene Kish company and send us the list of your pipes along with the associated working pressure and its usage and our colleagues in the sales unit will send you the price list for polyethylene pipes requested by you, as soon as possible.

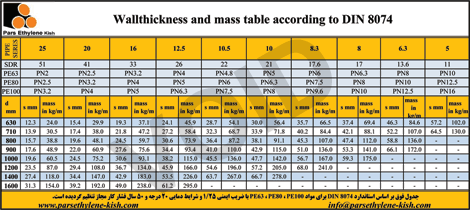

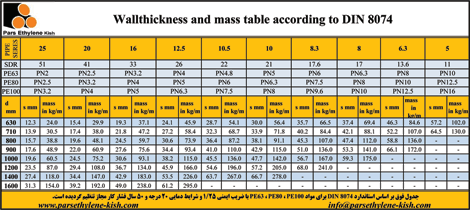

The table is according to DIN 8074 for material PE100 , PE80 . PE63 with SF 1/25 , 20`temp and 50 years work pressure limitation
We supplier HDPE pipe in the Middle East and Iran with the highest quality

Download the profile table of HDPE pipe

wallthickness-16-500 (new version)

wallthickness-16-500(new version)

wallthickness-560-2500 (new version)

wallthickness-560-2500(new version)

Polyethylene pipe Life time data Sheet (Din 8074)

Polyethylene pipe Life time Data Sheet

wallthickness-10-500 (old version)

wallthickness-10-500(old version)

  wallthickness-630-1600 (old version)

wallthickness-630-1600(old version)

HDPE Pipe

HDPE Pipe
